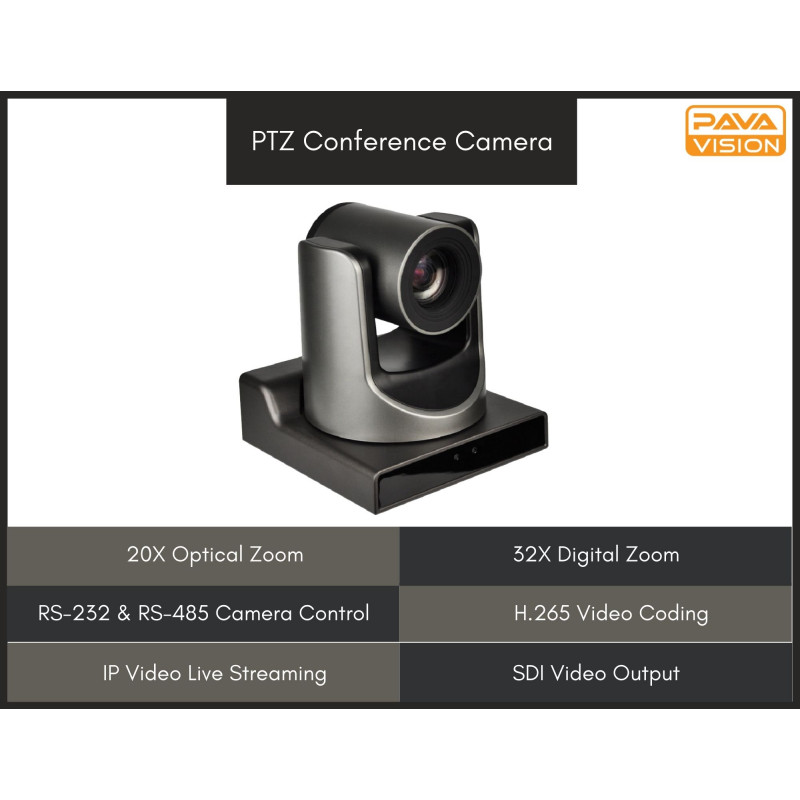

Full HD 1080P Pan Tilt Zoom (PTZ) Camera

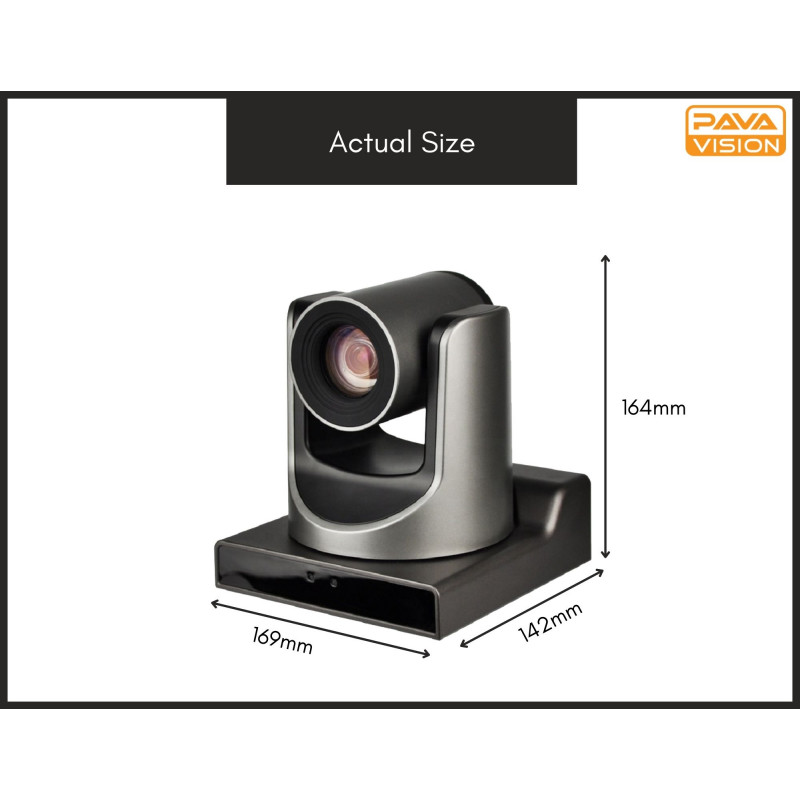

Descriptions: Full HD 1080p Broadcast & Conference Camera with 20X optical zoom for capturing HD images at long distances. The camera is ideal for broadcasting high-definition video signals for broadcast, recording, or video conferencing applications. 【Key Features】 • 60.7-degree wide-angle lens. • High performance in low light scenarios with Wide Dynamic Range. • Full 1920x1080p HD Resolutions up to 60 frames per second. • 2D and 3D noise reduction with our latest “low noise CMOS sensor”. • RS232 & RS485 (Serial), and IP (LAN/WAN) control • H.264, H.265, & MJPEG streaming over RJ-45 LAN port • HDMI, 3G-SDI or IP streaming (3 simultaneously) • PoE (Power over Ethernet) or 12VDC • RTMP, RTS • 1-year warranty • Photobooth capable • Power Supply: 12W (Max) • Input Voltage: 12V DC (10.8 - 13.0V DC) or PoE 802.3af • Dimensions: 142mm (W) x 164mm (H) x 169mm (D) (198H max w/ Tilt) • Camera Weight: 3.00 lbs. (1.36 kg) 【Camera & Lens】 1. Video Sensor: 1/2.7” CMOS, 2.12 Mega Pixels 2. Frame Rates: 1080p-60/50/30/25, 1080i-60/50, 720p-60/50/30/25 3. Frame Rates (CVBS): 576i-30, 480i-30 4. Focal Length: 20x, F4.42mm-88.5mm, F1.8-F2.8 5. Lens Zoom: 20x 6. Field of View: 60.7° 7. Min Lux: 0.05 Lux (@F1.8, AGC ON) 8. Shutter Speed: 1/30s - 1/10000s 9. SNR: ≥55dB 10. Vertical Flip & Mirror: Supported 11. Horizontal Angle of View: 3.36° (tele) to 60.7° (wide) 12. Vertical Angle of View: 1.89° (tele) to 34.1°(wide) 13. Working Environment: Indoor 【Rear Board Connectors】 1. Video Output: POE IP/HDMI/3G-SDI video out 2. Network Interface: RJ45 3. Audio Interface: Line In, 3.5mm (NDI, HDMI & IP Stream) 4. Communication: RS-232, RS485, PELCO-D/P, NDI 5. Baud Rate: 2400/4800/9600 bits 6. Power Supply: JEITA type Power Adapter (DC IN 12V) 7. 3G-SDI Interface: BNC – 75 Ohm, Female 8. USB 2.0 Interface: Future Use 【Applications】 1. Video Production 2. Virtual Webcam 3. Isolated Recordings 4. Free live streaming course 5. Broadcasting 6. Live production 7. Live streaming and broadcast 8. Network Camera Control 【Package】 Camera x1 Power Supply x1 Wall Mount bracket x1 Remote Control x1 Camera Control Cable x1 User Manual x1
