AUDAC All in one Digital Panel controller for MTX Processor

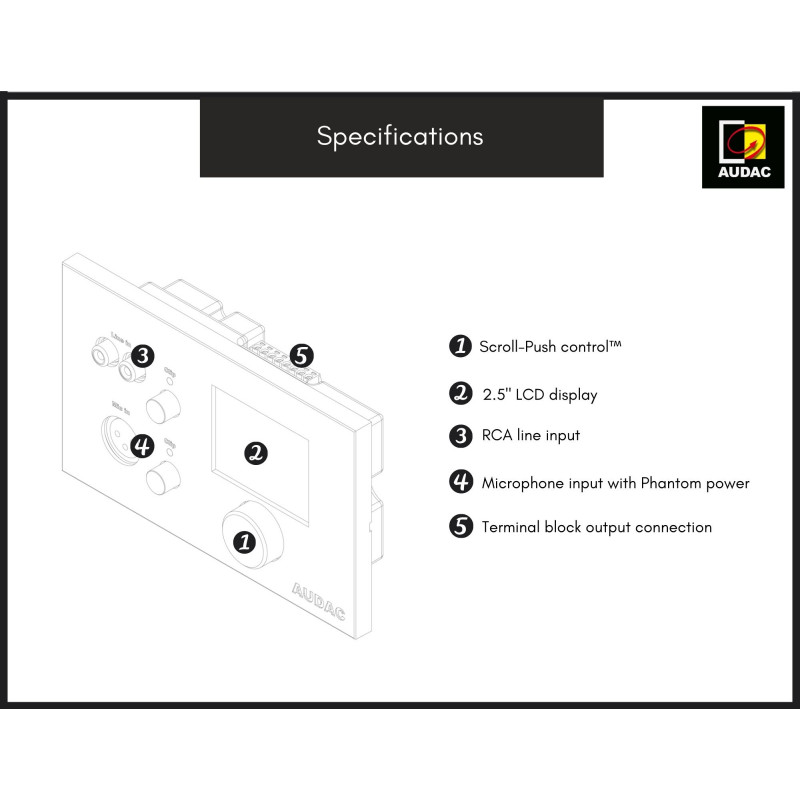

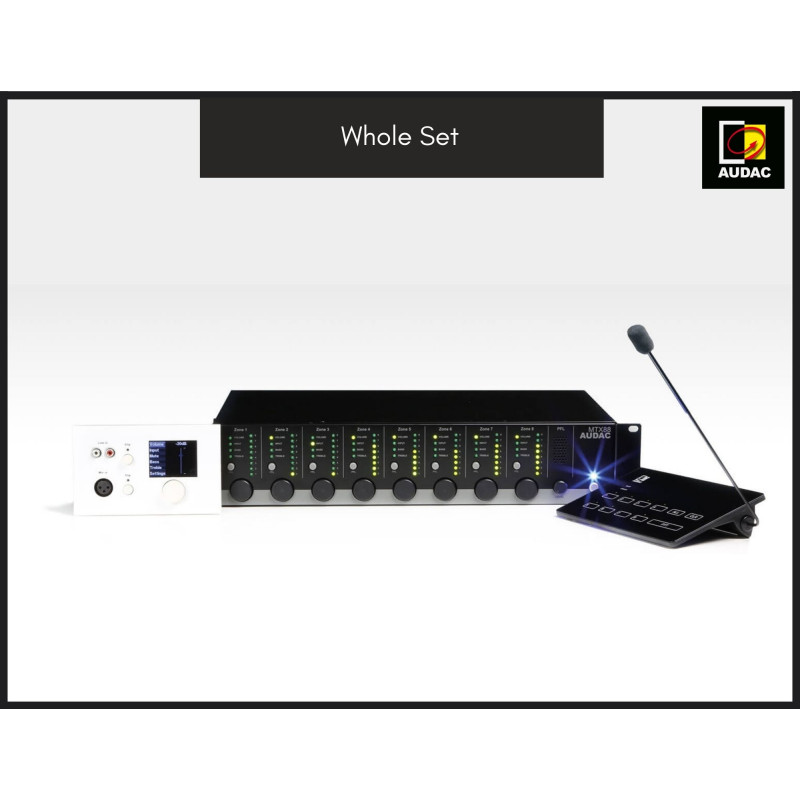

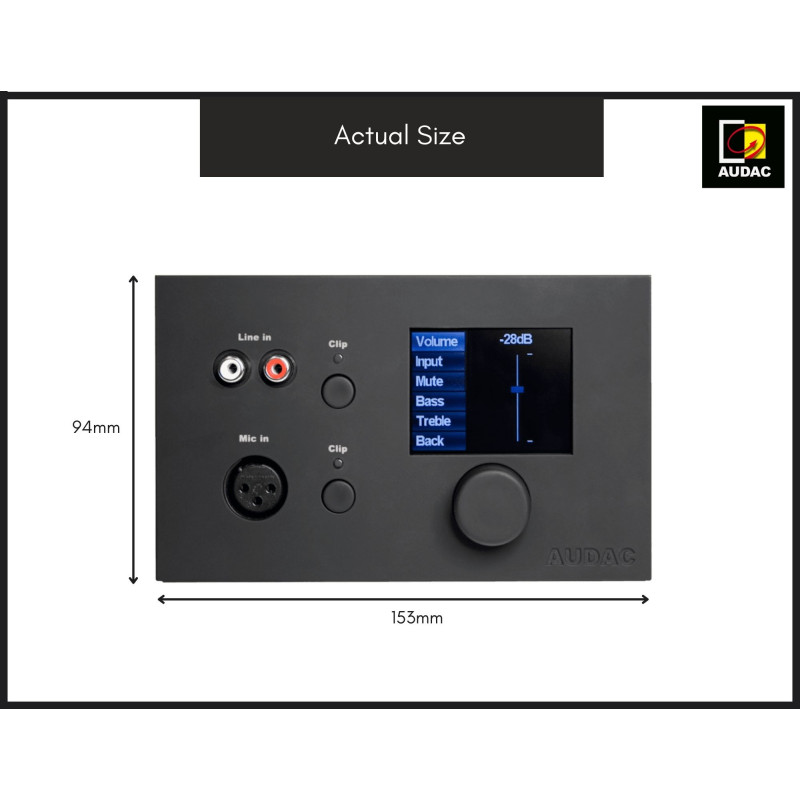

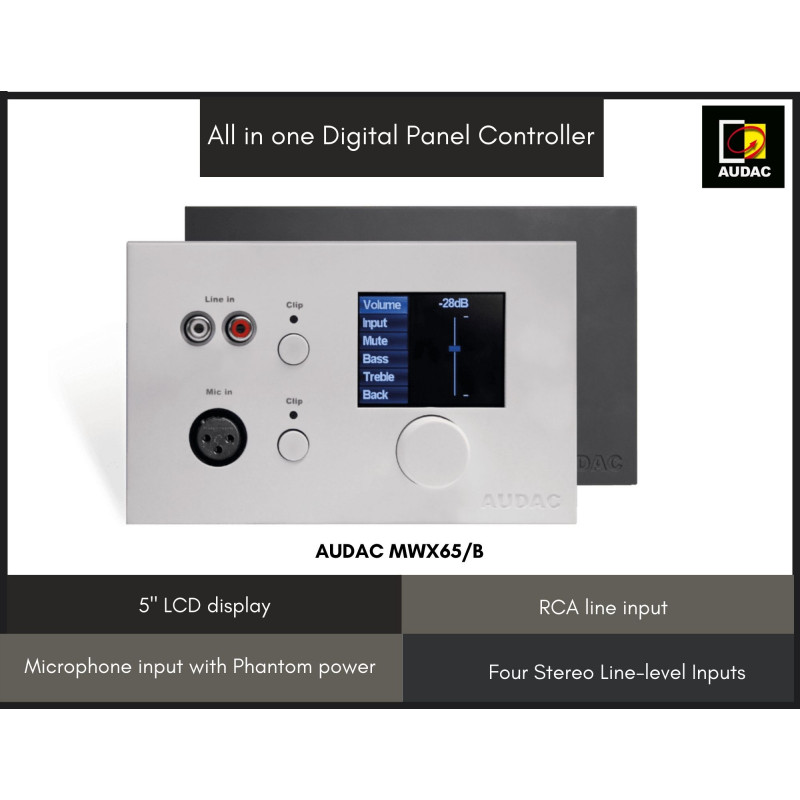

Descriptions: The MWX65 is an all-in-one wall panel controller to be used in combination with the AUDAC MTX series multi-zone audio matrix systems. It can control the input signal and volume for one zone and also contains an additional line and microphone level input which can be patched to the zone it is connected to. Both input selection and volume control, as well as a two-band tone control, can be controlled using the versatile rotatable push-dial while the integrated 2.5” graphical display ensures a user-friendly experience. An XLR connector is provided as additional microphone input while the line input is performed using RCA connectors. The signals applied to these inputs can be used as one additional local input. This enables you to connect any CD or MP3 player as a local music source or connect a microphone for speeches or other announcements. The input mixing can be done by using both push-lock potentiometers. The microphone input has the possibility to provide 12V phantom power which can be turned on and off by software configuration. The wiring between the matrix and the wall panel should be performed by using standard UTP CAT5 cabling which transfers both the control and audio signals to the matrix while providing the power supply for the wall panel. 【Features】 1. Audio Source Selection 2. Volume Control 3. Line Level Input (RCA) 4. Microphone Level Input (XLR) 5. Local Mixing 6. 15V Phantom Power 7. 2.5' Graphical Display 8. 2-Band Tone Control 【Specifications】 1. Digital control RS485 2. Audio transfer Analogue differential (Dual mono) 3. Inputs Line level (RCA) 4. Microphone level (Female XLR) 5. Phantom power 15 V DC (software enabling) 6. Microphone Sensitivity -50 dB ~ -15 dB 7. Microphone THD+N < 0.1% 8. Microphone Signal / Noise 75 dB 9. Line Sensitivity -12 dB ~ +12 dB 10. Line THD+N < 0.05% 11. Line Signal / Noise 85 dB 12. Cabling UTP CAT 5 (Up to 500 meter) 13. Display 2.5” Graphical Full colour 14. Power consumption 1.8 Watt - 75 mA / 24 V 15. Dimensions (Width x Height x Depth) 153 x 94 x 45 mm 16. Built-in Depth 37 mm 17. Weight net 0.21 Kg 18. Construction ABS 19. Connector 8-pin Euro-Terminal Block 20. Colour White (RAL9010) MWX65/W 21. Black (RAL9005) MWX65/B 22. Packaging Carton box 23. Shipping weight and volume 0.34 Kg ~ 0.00225 Cbm 24. Accessories Flush mount 25. Installation boxes WB5065/FS: Concrete & Brick walls WB5065/FG: Wooden & Gypsum walls 【Applications】 1. Residential Buildings 2. Industrial Buildings 3. Commercial Buildings 4. Conference Rooms 5. Office, Hotels 6. Restaurants, Bars
