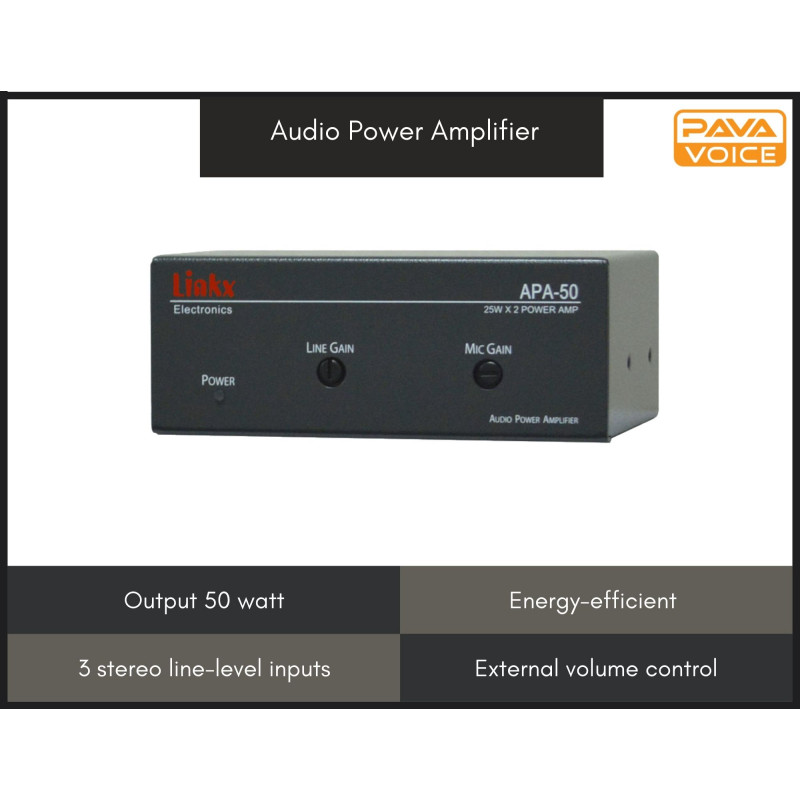

Mini 25W + 25W Dual Channel Audio Power Amplifier

Description:

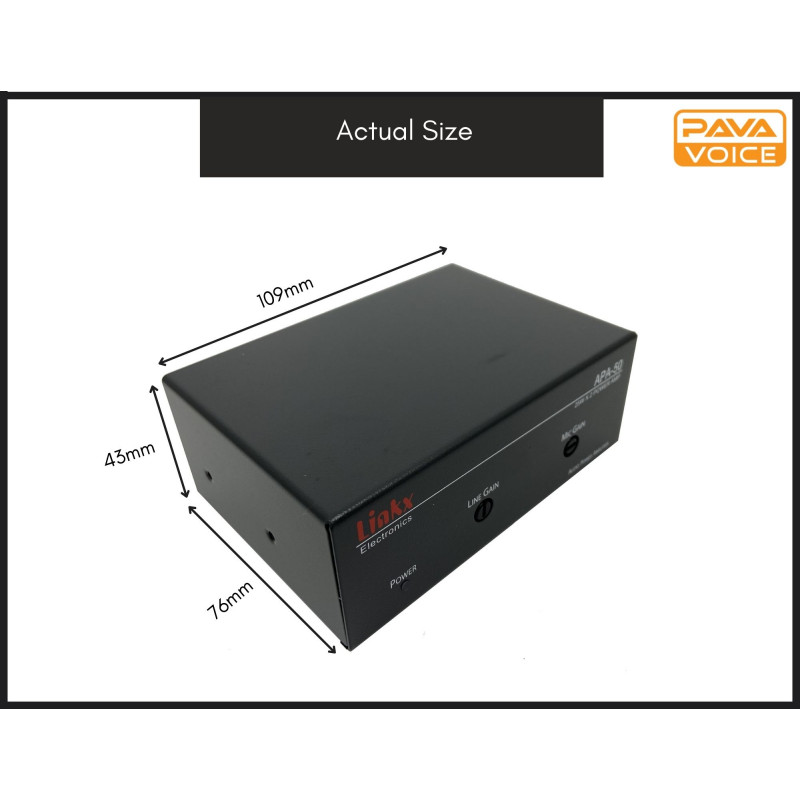

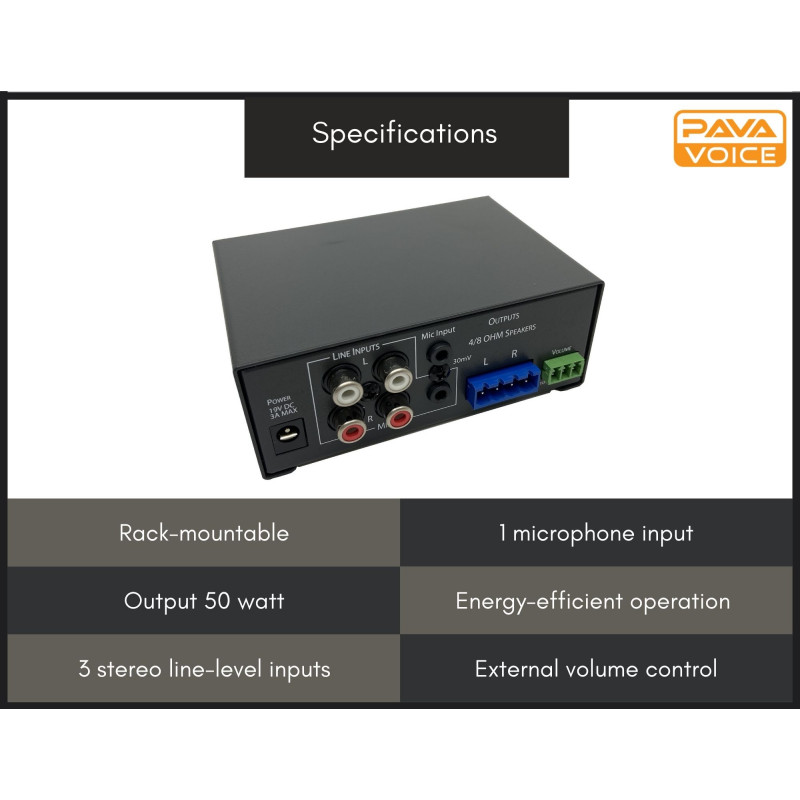

The Audio Power Amplifier is a quarter rack width 50 watts advanced class D audio power amplifier as a standalone product for classrooms and small systems. Three stereo inputs and discrete microphone input, along with separate line and microphone gain adjustments, allow connection to a projector, wireless microphone receiver, and other sound sources. The energy-efficient amplifier automatically goes into standby mode if no input signal is sensed for 20 minutes, dropping power consumption to 0.8 W. 【Features】 1. Output 50 watt (25 watts RMS per channel) 2. 3 stereo line-level inputs with gain control 3. 1 microphone input with independent gain control 4. External volume control 5. Rack-mountable 6. Energy-efficient operation after 20 minutes without input signal 【Specifications】 1. Amplifier type: 4/8 OHM Class D 2. Frequency response: 20Hz - 20kHz 3. Signal to Noise: <0.2% @ 1kHz at nominal level (1 watt, 4-ohm load.) 4. Audio input: STEREO: (25Watt+25Watt) at 1KHz, 4Ohm load 5. External Power Supply: 19V / 3.43A 6. Enclosure type: Metal 7. Regulatory compliance: CE FCC 8. Dimension: 109(W) × 76(D) × 43(H) mm 9. Weight: 350 g 【Applications】 1. Restaurant/ Cafe/ Bar 2. School/ Classroom 3. Audio small system 4. Commercial 【Package】 Audio Power Amplifier x1 AC Adapter x1 AC Connector x1 set 4-Pin Captive Screw Plug x1 3-Pin Captive Screw Plug x1 Rubber Foot x4 User Manual x1
