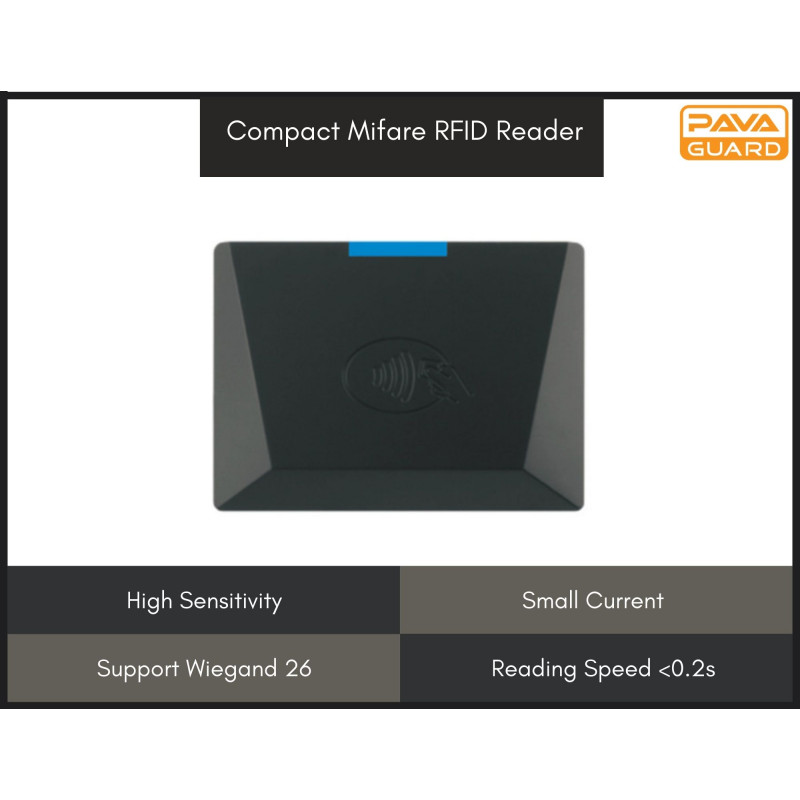

Compact Mifare RFID Reader

Description: MINI RFID reader, use the advanced RF technology and embedded mini access controller, combined with efficient decoding algorithm to achieve 64 bits read-only EM4100 compatible ID card and 13.56mhz frequency, encrypted algorithm to get the MIFARE format IC card data, get the card number by calculating, have high sensitivity, small current, power supply, low price, excellent functions. The FC-182 MINI RFID reader is suitable for the access control system, time attendance system, charge, burglar, etc. 【Features】 1. Working Voltage: DC10.8 - 13.8V >Standard 12V 2. LED: Built-in three groups 3. Antenna: Built-in 4. Working Current: 50-70mA 5. Communication Distance: 120m 6. Transfer Way: Realtime 7. Reading Speed: <0.2s 8. Reading Spacing: <0.5s 9. Operating Humidity: 10-90% 10. Speaker: Buzzer 11. Working Temperature: -25℃-75℃ 12. Reading Frequency: 125KHz / 13.56MHz 13. Network: Wiegand 26 bits 14. Reading Distance: 0-50mm (Mifare Card) 【Applications】 1. Access control 2. Attendance 3. Charging 4. Anti-theft 【Package】 Mifare RFID Reader x1 User Manual x1
