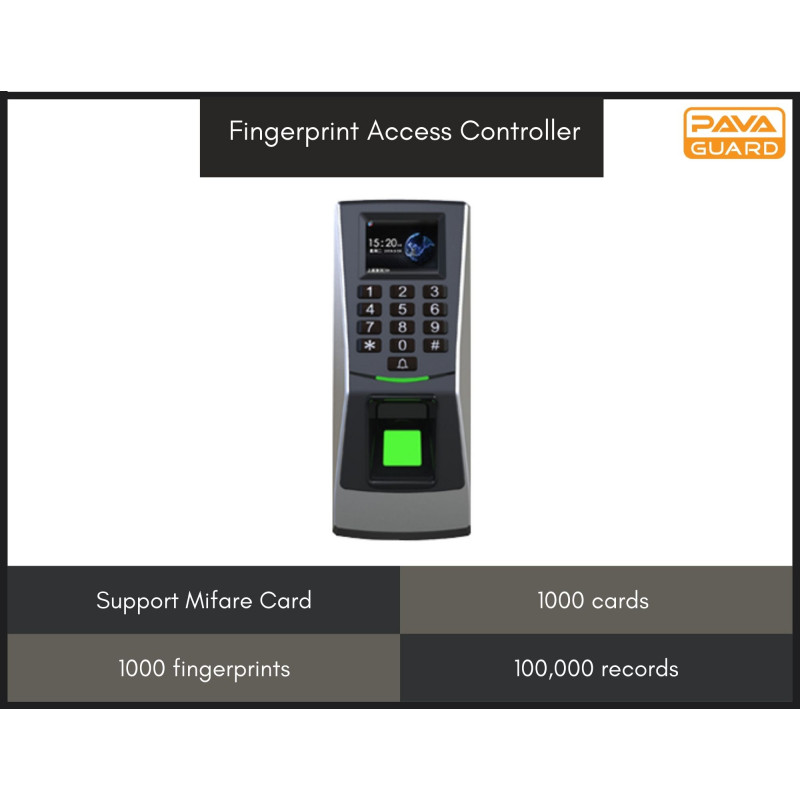

Fingerprint Access Controller with Mifare RFID Reader

Descriptions:

Fingerprint access controller supports standalone running and network management. It uses a multi-core ARM processor, mass memory. Built-in fingerprint identification circuit supports high-speed identification and rejection of false fingerprints. Fingerprint identification time < 1S, 1.77 inch TFT color screen, support 1000 fingerprints, 1,000 cards, 1,000 passwords, 100,000 records, have the ID and Mifare format, TCP/IP, and RS485. Support 1 group of unlocking relay, 1 group of the door sensor, 1 group of alarm output, Can use U disk to backup data, support cloud platform. Have traditional Chinese, Simplified Chinese, and English 3 language choose (other languages can be customized). 【Product Parameters】 1. Operating Temperature: 0-70℃ 2. Operating Humidity: 20-80% 3. False Recognition Rate: < 0.0001% 4. Working Voltage: 12V DC 5. Display: 2.8 inch TFT color screen 6. Verification Mode: 1:N, 1:1 7. Registration Way: Fingerprint, Password, ID Card, Mifare Card 8. Working Mode: Fingerprint Access Controller 9. Fingerprint Acquisition Area: 16 x 14 mm 10. The acquisition Angle Range: ±45° 11. Speed: <1s 12. Capacity: 1,000 fingerprints, 1,000 cards, 1,000 passwords, 100,000 records(30,000 fingerprint can be customized) 13. Communication: TCP/IP, RS485, USB (WIFI need to customized) 14. Controller Port: Wiegand26 15. Size: 65.6 X 160.6 X 39.5mm 【Features】 1. Living Fingerprints 2. High-Speed Algorithms 3. Maximum fingerprint capacity can be made into 300 million 4. Support TCP/IP Communications 5. Narrow design 【Applications】 1. Office buildings 2. School/ Classroom 3. Construction site 4. Community 5. Scenic Area 6. Pedestrian Passage 7. Club 8. Government 【Package】 Fingerprint Access Controller x1 Wall Mount bracket x1 Wire x1 set L-shape wrench x1 Warranty card x1
