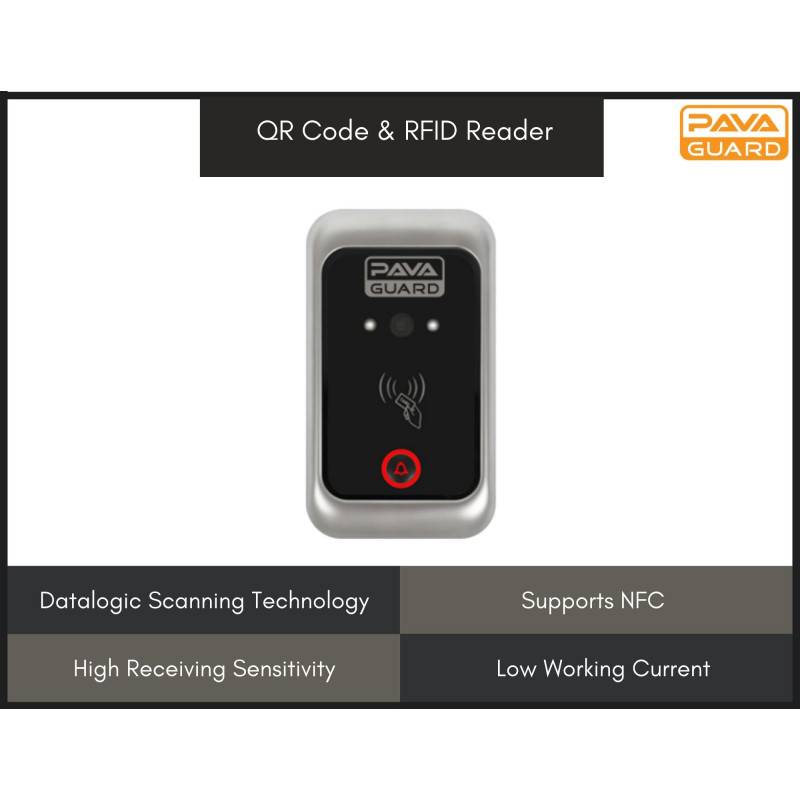

QR Code & Multi format RFID Reader

Description:

QR Code Card Reader adopts advanced RFID receiving circuit design and embedded micro-controller image recognition, supporting QR code, Mifare card, ID card, CPU card, bank card, NFC card, with high receiving sensitivity, low working current, single DC power supply, low price, high performance.

This series of QR code card reader can recognize the QR code on the paper and the phone's screen. It can be widely applied in access control systems, turnstile systems, consumption systems, mobile boarding areas such as QR code, suitable for all kinds of applications of high performance and multi-function tool of QR code and data acquisition card. It uses Datalogic Scanning the latest digital imaging technology, can be quickly read 1D and 2D identification numbers.

【Features】

1. Strong recognition ability, can read mobile phone screen, paper, and other types of two-dimensional code and one-dimensional code.

2. High-speed reading, for a variety of mobile phone LCD screens and paper, as long as within the scope of the recognition window, can achieve high-speed reading.

3. Powerful identification method, support QR code, Mifare card, ID card, CPU card, bank card, NFC card.

4. Strong data interaction ability, Wiegand 26/34/66, RS485, and other data output.

5. It supports a DC9-14V power supply and is easy to use and install.

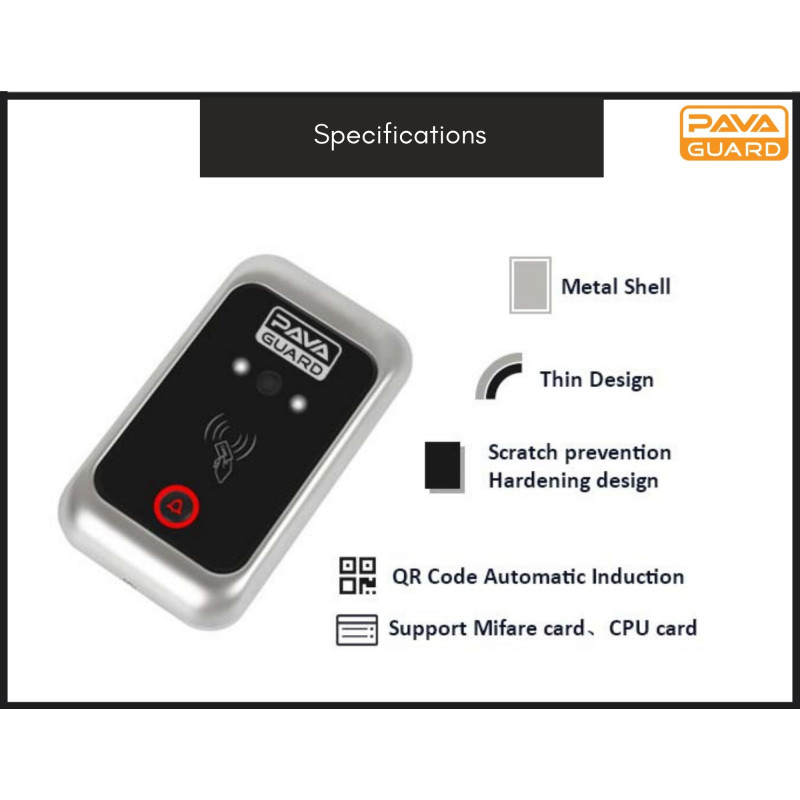

5. FC-863MS two-dimensional code access control curving thin body, stylish and simple appearance, anti-scratch acrylic hardening design, smooth metal body structure, fully highlight the high-end products.

【Specifications】

1. Types of scanning and decoding support: One-dimensional codes: UPC-A, UPC-E, EAN-13, ISBN13, EAN-8, 39 code, 128 code, crossover 25 code, etc

2. Support Mifare card, ID card, identification card, CPU card, bank card, mobile phone NFC, and other cards

3. Interface output: Wiegand 26/34/66 output, RS485 output

4. Power input: DC9~14V power supply

5. QR code trigger mode: automatic induction

6. Working temperature: - 10 ℃ to 70 ℃

7. Working humidity: 5%-95%

8. Product performance: 1GHz main frequency CPU

9. Operating current: <500MA

10. Prompt mode: LED flashing green light, buzzer prompt

11. Scanning Angle: Angle + 55 °, 360 ° rotation

12.QR code scan distance: 1-20cm

13.Resolution: 640 x 480

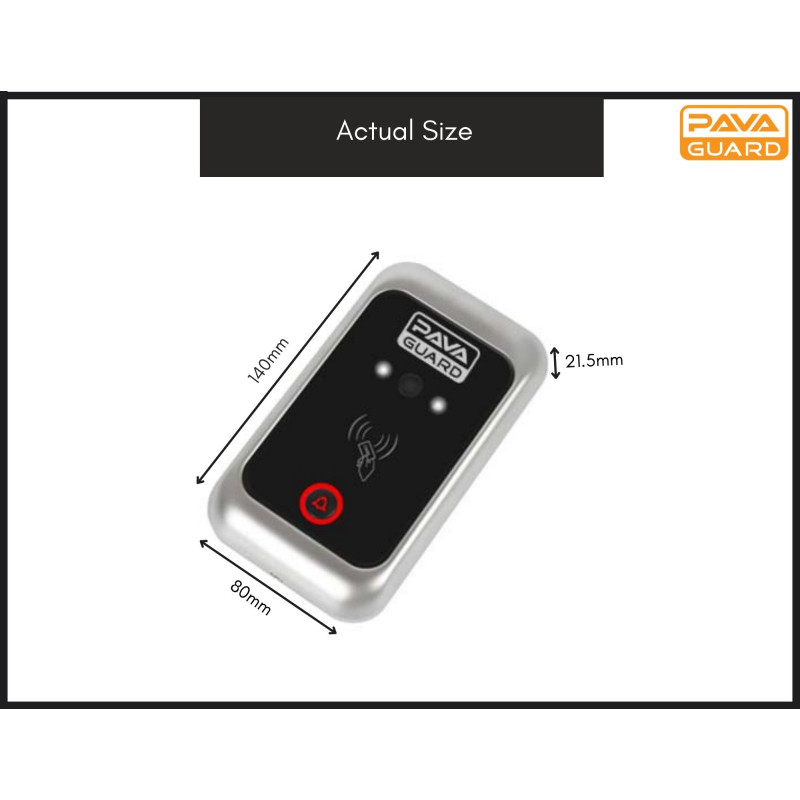

14. Appearance size: 140 x 80 x 21.5mm

【Applications】

1. Access Control System

2. Turnstile System

3. Consumption System

4. Mobile Boarding Areas
