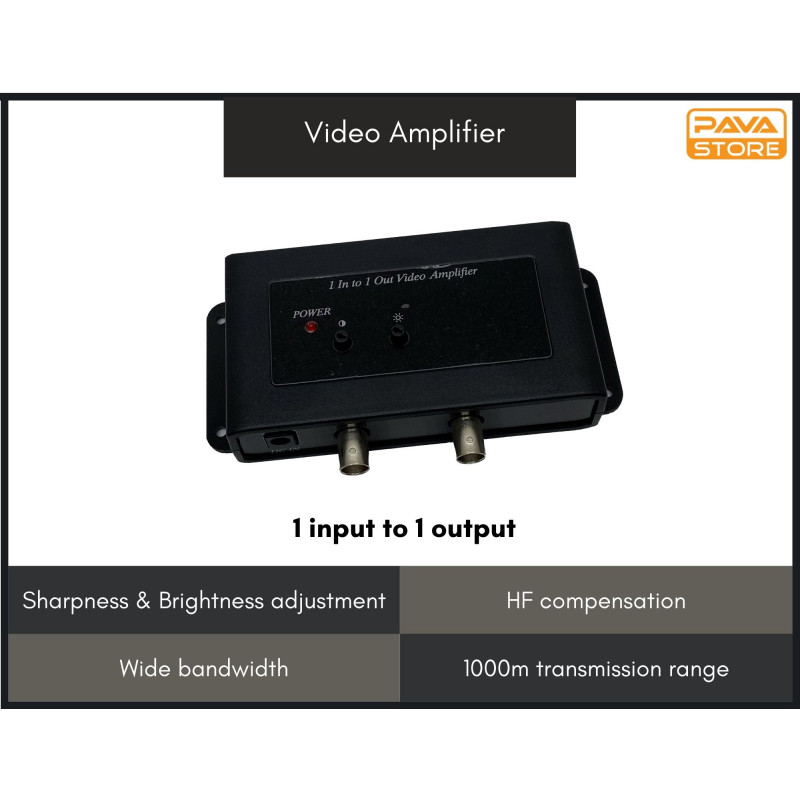

1 in 1 out Composite Video Amplifier, RCA connector

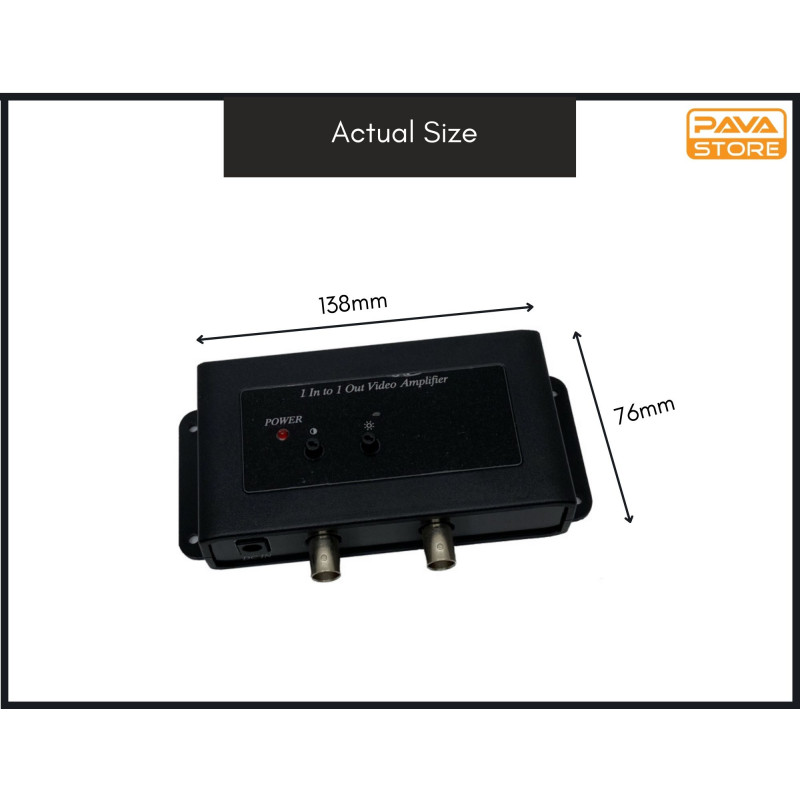

Description: - Wide bandwidth, video gain compensation amplification - HF compensation - 10dB adjustable image gain - Sharpness and Brightness adjustment - Transmission range: 1000 meters (RG59 coaxial cable) - Red LED: power on/off - It can be a connected video camera, multiplexer, VCR, DVR...etc - Power supply included 【Features】 1. Video Input channel: 1 2. Video Output channel: 1 3. Video Input Level: 0.8~1.2Vp-p, 75 Ohms 4. Video Output Level: 1Vp-p (Standard), 75 Ohms 5. Video Bandwidth: 10hz - 10MHz 6. Transmission range: 1000 meters 7. Power supply: DC12V / 500mA 8. Power consumption: 100mA 9. Dimensions: 138mm x 76mm x 32mm 10. Weight: 100g 11. Material: ABS Black 【Applications】 1. CCTV 2. AV accessories 【Package】 Video Amplifier x1 Screw x1 set Adapter x1 User Manual x1
