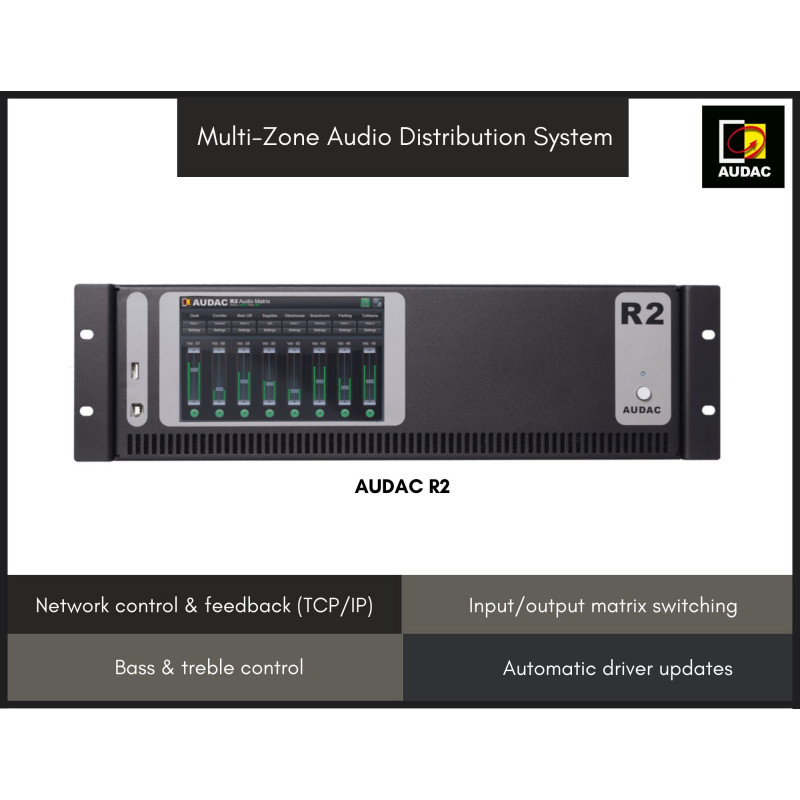

Multi-Zone Audio Distribution System

Description:

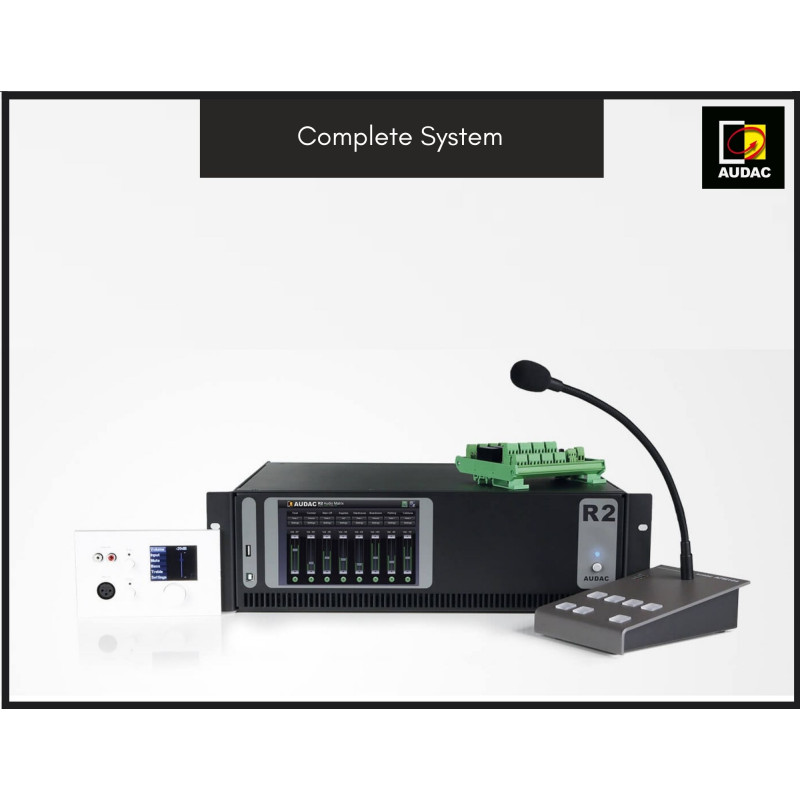

The R2 is a multi-zone audio distribution system that is a truly polyvalent solution for commercial and residential applications, with the flexibility of a multizone router. It delivers a comprehensive and expandable powerful solution for nearly every situation. With its large number of extension modules and configuration modes, it provides a solution for an uncountable amount of installations – large or small, simple or complex. In general, the R2 is an 8 x 8 digital audio matrix system, which is based on a powerful DSP processor. It is fully digitally controllable, and the built-in digital matrix makes it possible to patch any of the input signals to any of the output signals. The AUDAC APM paging tables are designed to create a powerful and flexible paging solution in combination with the R2. Using the freely available AUDAC Touch™ application for smart devices guarantees total system control and configuration from any device on any location and at any time.

Note: The AUDAC R2DIS interactive 7" touch-screen display kit shown on some promotional images of the R2 is an optional expansion kit not included in the standard R2.

【Features】

1. Network control & feedback (TCP/IP).

2. Input/output matrix switching.

3. Volume control.

4. Mute control.

5. Bass & treble control.

6. Automatic driver updates (via driverCentral Cloud)

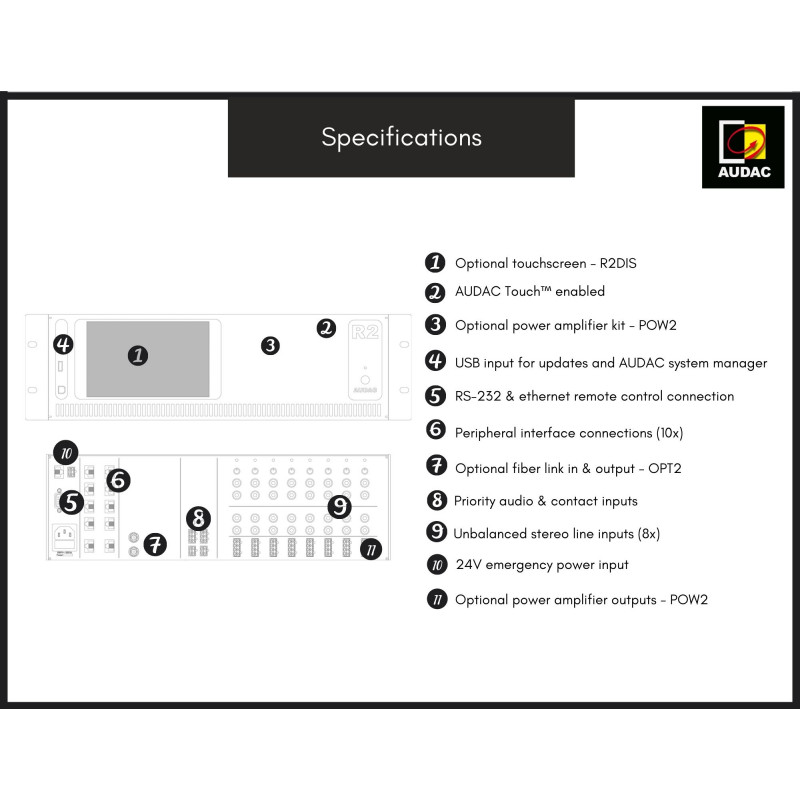

【Specifications】

1. Unbalanced Stereo:  Type 8 x Stereo Unbalanced Line

2. Connector: RCA

3. Frequency Range: 20 Hz ~ 20kHz

4. Sensitivity: -50dBV ~ +10dBV

5. THD + N: 0.02%

6. Signal / Noise: <110dB

7. Impedance: 600 Ohm

8. Priority Contact: 2 x Priority Contact Input

9. Peripheral Interface: 8 x Digital audio / RS485 / 24V DC; 2 x RS485 +24V DC

10. Remote Control: Ethernet; RS-232

11. Power: IEC Type  C13 with fuse

12.  Emergency Power: 2-pin Euro Terminal Block ~5.08mm

13. Power Consumption:

a) R2: 20W

b) R2DIS: 4W

c) POW2: 41W

d) OPT2: 0.3W

14. Weight: 8.85Kg

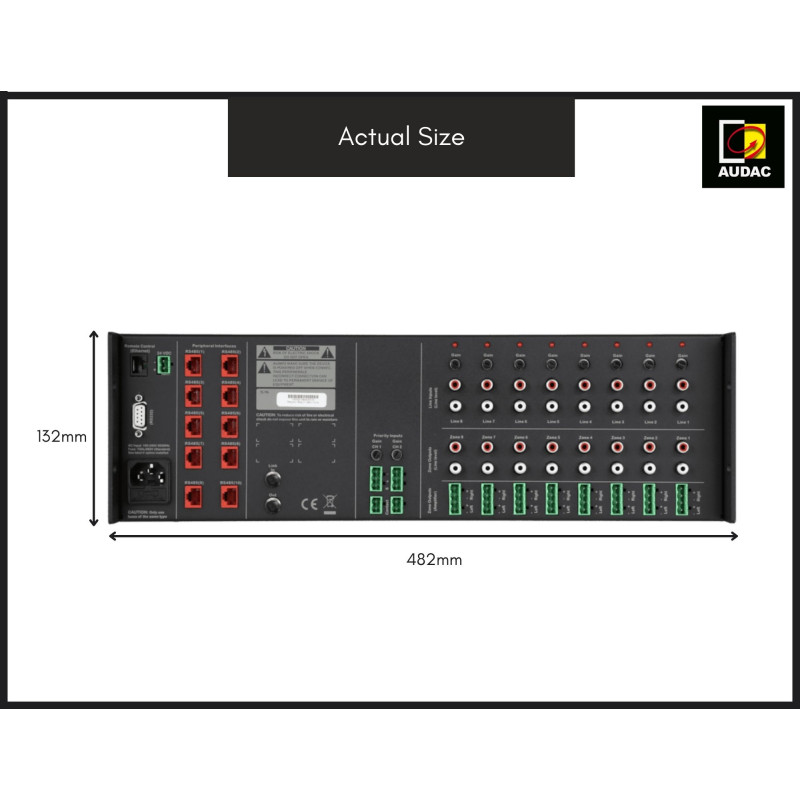

15. Dimensions (W x H x D): 482 x 132 x 335 mm

16. Unit Height: 3HE

【Applications】

1. Studio

2. Classroom

3. Restaurant

4. Office building

5. Fitness center
